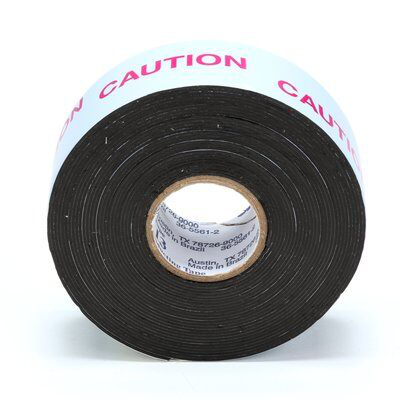

3M 13-1X15FT SCOTCH 13 TAPE 1INX15'
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$16.48/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 13-1X15FT
NorthEast Part # 87250

Features

  • Rubber resin offers optimized adherence
  • Scotch® Electrical Semi Conducting Tape 13 is a 30 mil, highly conformable, electrical semi conducting tape. This tape retains its conductivity with stretch. It offers excellent performance with the most solid dielectric cable insulations and conductors. The tape is suitable for indoor or outdoor applications.
  • Compatible with high-voltage splicing and terminating materials
  • Withstands temperatures up to 194 °F (90 °C)
  • Scotch® Electrical Tape 13 is non vulcanizing and shelf stable while maintaining stable conductivity over a wide temperature range. The tape elongates easily and conforms to irregular shapes. This semi conducting, premium grade tape provides excellent shielding for cable joints on solid dielectric insulated power cables. It withstands temperatures up to 194 °F (90 °C). The ethylene propylene, rubber based tape electrically rounds out high voltage connectors and bonds to insulating materials that minimize electrical stresses. ASTM Approved & RoHS 2002/65/EC Compliant.
  • Rated for 600V applications
  • ASTM Approval and RoHS 2011/65/EU Compliant.

Specifications

  • 3M ID: HT002001218
  • Adhesive Material: Rubber
  • Application: Electrical Maintenance
  • Backing Material: Ethlylene Propylene Rubber || Ethylene Propylene Rubber
  • Brand: Scotch®
  • Breaking Strength (Imperial): 6 lb/in
  • Color Family: Black
  • Dielectric Strength (V/mil): Conductive
  • Elongation: 800 %
  • Elongation at Break: 8
  • Emergency Overload Temperature (Celsius): 130°C
  • Emergency Overload Temperature (Fahrenheit): 266°F
  • High Temperature Rating: 194°F (90°C)
  • Insulated: No
  • Liner/Linerless: Liner
  • Material: Semi-Conducting EPR with Liner
  • Maximum Operating Temperature (Celsius): 130 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 266 Degree Fahrenheit
  • Overall Length (Imperial): 15 ft
  • Overall Length (Metric): 4.6 m
  • Overall Width (Imperial): 1 in
  • Overall Width (Metric): 25.4 mm
  • Product Color: Black
  • Product Type: Rubber and Splicing Tapes
  • Self-extinguishing: No
  • Self-sticking: No
  • Shelf Life: 5 Year
  • Shelf Life in Months (From Date of Manufacture): 60
  • Suitable for High Voltage: Yes
  • Tape Grade: Premium
  • Tape Length (Metric): 4.6 m
  • Tape Type: Electrical Semi-Conducting
  • Tape Width (Imperial): 1 in
  • Tape Width (Metric): 25.4 mm
  • Tensile Strength (Metric): 1378.9 kPa
  • UV Resistant: No
  • Vulcanizing: No

Overview

UPC 05400715017
Family Brand Name Scotch
Product Description Semi-Conducting Tape 3/4" x 15'
GTiN 00054007150176
Length 15 ft
Width 1 in
Size .75 in x 15 ft
Color Black
Backing Material Ethylene Propylene Rubber
Applications Hi Voltage
Sub Brand Scotch
Max Operating Temperature 266 degrees F
Overall Length 15 ft
