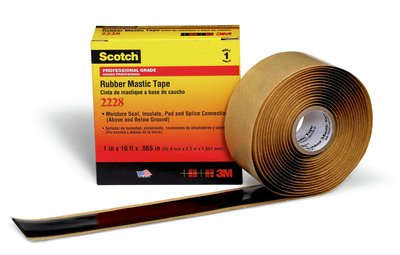

3M 2228-2x3FT Rubber Mastic Tape
Product image thumbnail 0
Product image thumbnail 1
$10.99/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2228-2x3FT
NorthEast Part # 393819

Overview

Scotch® Tape 2228 is a 65-mil thick, premium-grade, highly conformable tape used to insulate, pad and seal bus bar and splice connections. It withstands temperatures up to 194 degrees F (90 degrees C).

Scotch® Tape 2228 is moisture-resistant and has an aggressive, temperature-stable mastic adhesive that offers excellent adherence. This tape features an ethylene propylene rubber backing and optimally resists against UV rays. Ideal for both indoor and weather-exposed outdoor applications, this tape is designed for all your moisture-sealing and electrical insulating applications. RoHS 2011/65/EU Compliant.

  • Provides protection against UV rays with its ethylene propylene rubber backing
  • Tape measures 2 in x 3 ft x 65 mil
  • Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts
  • Thick construction allows quick application build–up and padding over irregular connections
  • Withstands temperatures up to 194 degrees F (90 degrees C)
  • RoHS 2011/65/EU Compliant
  • 1 roll/carton, 48 rolls/case

Specifications

  • 3M ID: 80611200777
  • Adhesive Material: Mastic
  • Backing Material: Ethylene Propylene Rubber
  • Brand: Scotch
  • Breaking Strength: 10 lb/in
  • Case Quantity: 48 Rolls
  • Color: Black
  • Dielectric Strength: 500 V/mil
  • Elongation: 1000 %
  • Family: Scotch® Rubber Mastic Tape 2228
  • High Temperature Rating: 194°F (90°C)
  • Insulated: RoHS 2011/65/EU Compliant, Yes
  • Length: 3 Linear Foot
  • Length (Metric): 0.91 m
  • Liner/Linerless: Liner
  • Material: Mastic with EPR Backing
  • Operating Temperature (Celsius): Up to 90 °C
  • Operating Temperature (Fahrenheit): Up to 194 °F
  • Operating Temperature Range (Celsius): Up to 90 °C
  • Operating Temperature Range (Fahrenheit): Up to 194 °F
  • Product Markets: Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution
  • Product Type: Mastic tape
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls per Case: 48
  • Self-Extinguishing: No, Sunlight Resistant
  • Self Sticking/Amalgamating: RoHS 2011/65/EU Compliant, Yes
  • Solution for: Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing
  • Suitable for High Voltage: No, Sunlight Resistant
  • Tape Grade: Premium
  • Tape Type: Sealing and Mastic
  • Thickness: 65 mil
  • Thickness (Metric): 1.65 mm
  • Trademark: Scotch
  • UV Resistant: RoHS 2011/65/EU Compliant, Yes
  • Voltage Application: High Voltage
  • Vulcanizing: No, Sunlight Resistant
  • Width: 2 Inch
  • Width (Metric): 50.8 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400743478
Product Description Scotch® Tape 2228 is a 65 mil thick, premium grade, highly conformable tape used to insulate, pad and seal bus bar and splice connections. It withstands temperatures up to 194 °F (90 °C).
GTiN 00054007434788
Family Brand Name 3M
Length 3 LF
Width 2 in
Color Black
Thickness 1.65 mm
Material Mastic With EPR Backing
Product Type Mastic Tape
