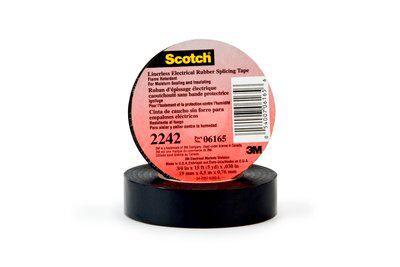

3M 2242-2x15FT 1 Inch Core Linerless Splicing Compound

Features

• Rubber-resin adhesive provides excellent adherence while self-fusing, ethylene propylene rubber backing resists UV rays and heat.
• Scotch® Tape 2242 is a linerless 30 mil thick, general purpose, electrical rubber tape that's suitable for bus bar insulation and moisture sealing of cable ends. The high voltage, flame retardant tape ensures excellent tacking with its self fusing, ethylene propylene rubber resin adhesive.
• Comes in black color
• Scotch® Tape 2242 is designed for terminating and splicing wires and cables and maintains stability in temperatures up to 194 °F (90 °C). This weather resistant tape has excellent physical and electrical properties and provides a moisture seal and void free buildups. The highly conformable tape has a flexible, rubber backing that optimally resists UV rays, heat and flame. ASTM Approved and RoHS 2011/65/EU Compliant.
• ASTM Approved and RoHS 2011/65/EU Compliant

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610973390
• Adhesive Material: Rubber Resin
• Adhesive Type: Rubber Resin
• Agency Approvals: ASTM D-4388 Type 1, 2 & 3 || ASTM D-4388 type 1, 2 & 3 | HH-I-553C || HH-I-553C
• Application: Insulation
• Backing Material: Ethylene Rubber || Rubber
• Brand: Scotch®
• Breaking Strength (Imperial): 7.5 lb/in
• Case Quantity: 8 Rolls
• Color Family: Black
• Dielectric Strength (V/mil): 750 V/mil
• Elongation: 10 %
• Elongation at Break: 8.5 ()
• Emergency Overload Temperature (Celsius): 130°C
• Emergency Overload Temperature (Fahrenheit): 266°F
• Family: 3M™ Linerless Splicing Compound 2242
• Flame Resistant: Yes
• Flame Retardant: Yes
• Liner/Linerless: Linerless
• Manufacturing Origin: USA
• Material: Linerless EPR
• Maximum Operating Temperature (Celsius): 90 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
• Minimum Order Quantity: 1 Roll
• Operating Temperature (Celsius): 90 °C
• Operating Temperature (Fahrenheit): 194 °F
• Overall Length (Imperial): 15 ft
• Overall Length (Metric): 4.6 m
• Overall Width (Imperial): 2 in
• Overall Width (Metric): 50.8 mm
• Product Color: Black
• Product Type: Rubber and Splicing Tapes
• Rolls per Carton: 1
• Rolls per Case: 8
• Self-extinguishing: No
• Self-sticking: Yes
• Shelf Life: 5 Year
• Shelf Life in Months (From Date of Manufacture): 60
• Specifications: ASTM D-4388 Type 1, 2 & 3 || HH-I- 553C
• Specifications Met: ASTM D-4388 Type 1, 2 & 3 || HH-I-553C
• Tape Grade: Premium
• Tape Length (Metric): 4.6 m
• Tape Type: Medium Grade Rubber Tape
• Tape Width (Imperial): 2 in
• Tape Width (Metric): 50.8 mm
• Tensile Strength (Imperial): 250 Pound-Force Per Square Inch || 250 psi
• Tensile Strength (Metric): 1723 kPa
• Tensile Strength lb/in (N/100 mm): 7.5 (131)
• UV Resistant: Yes
• Voltage Rating: 600 V
• Vulcanizing: No
