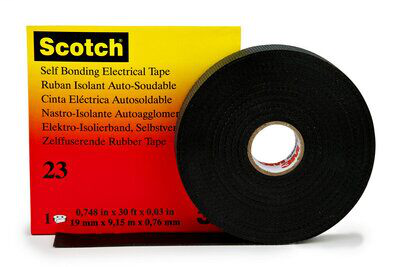

3M 23-3/4"x30FT Rubber Splicing Tape
$17.51/ea
16 Available for Delivery
Order by 06:00pm Monday for Delivery Tuesday
16 Available for Pickup at Brockton, MA - Counter
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 23-3/4X30FT
NorthEast Part # 32963

Features

  • Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
  • Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 °F (90 °C).
  • Temperature rated for continuous adhesion to 194°F (90°C)
  • Special polyester liner keeps tape protected and clean during application
  • ASTM Approved & RoHS 2002/65/EC Compliant

Specifications

  • 3M ID: HT002001309
  • Adhesion to Steel: N/A
  • Adhesive Material: Rubber Resin
  • Application: Electrical Maintenance || Insulation
  • Backing Material: Ethylene Propylene Rubber
  • Brand: Scotch®
  • Breaking Strength (Imperial): 8 lb/in
  • Color Family: Black
  • Context: AutomotiveAftermarket
  • Dielectric Strength: 800 V/mil
  • Elongation at Break: 1000%
  • Emergency Overload Temperature (Celsius): 130°C
  • Emergency Overload Temperature (Fahrenheit): 266°F
  • Family: Scotch® Rubber Splicing Tape 23
  • High Temperature Rating: 194°F (90°C)
  • Insulated: Yes
  • Insulation Resistance: > 10^6 megohms
  • Liner/Linerless: Liner
  • Material: EPR with Liner
  • Maximum Operating Temperature (Celsius): 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
  • National Stock Number: 5970011827761
  • Operating Temperature (Celsius): Up to 90 °C
  • Operating Temperature (Fahrenheit): Up to 194 °F
  • Operating Temperature Range (Celsius): 0 °C to 90 °C
  • Overall Length (Imperial): 30 ft
  • Overall Length (Metric): 9.1 m
  • Overall Thickness (Imperial): 30 mil
  • Overall Thickness (Metric): 0.76 mm
  • Overall Width (Imperial): 0.75 in
  • Overall Width (Metric): 19 mm
  • Product Color: Black
  • Product Form: Roll
  • Self-extinguishing: No
  • Self-sticking: Yes
  • Shelf Life: 5 Year
  • Shelf Life in Months (From Date of Manufacture): 60
  • Specifications: ASTM D-4388 Type 1, 2 & 3
  • Specifications Met: ASTM D-4388 Type 1, 2 & 3
  • Suitable for High Voltage: Yes
  • Tape Color: Black
  • Tape Grade: Professional
  • Tape Length (Metric): 9.1 m
  • Tape Type: Professional Grade Rubber Tape
  • Tape Width (Imperial): 0.75 in
  • Tape Width (Metric): 19.1 mm
  • Tensile Strength (Imperial): 8 Pound-Force Per Square Inch
  • Tensile Strength (Metric): 55 kPa
  • UV Resistant: No
  • Voltage: 69 kV
  • Voltage Application: All voltage classes
  • Voltage Rating: 69 kV
  • Vulcanizing: Yes

Overview

UPC 05400715025
Product Description Rubber Splicing Tape 3/4" x 30'
GTiN 00054007150251
Length 30 ft
Width 0.75 in
Size .75 in x 30 ft
Color Black
Type Insulating and Splicing
Thickness 0.76 mm
Backing Material Polyester lining
Applications For High Voltage Applications
Temperature Rating 0 - 90 C
Family Brand Name Scotch
Tensile Strength 8 Pound-Force Per Square Inch
Sub Brand Scotch
Max Operating Temperature 194 degrees F
Overall Length 30 ft
