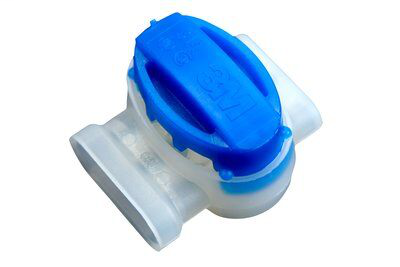

3M 314-BOX 50/Box Insulation Displacement Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.94/ea
300 Available for Delivery
Order by 06:00pm Tuesday for Delivery Wednesday
300 Available for Pickup at Brockton, MA - Counter
Available at These Locations
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 314-BOX
NorthEast Part # 210244

Features

  • Blue cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
  • 3M™ Scotchlok™ Insulation Displacement Connector 314 provides a dual element connection and moisture resistant seal with a mineral oil based grease. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping, flame retardant and moisture resistant.
  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • Accommodates 22 to 14 AWG solid/stranded
  • 3M™ Scotchlok™ Insulation Displacement Connector 314 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610253660
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok™
  • Color Family: Blue
  • Conductor Size: 22 - 14 AWG
  • Conductor Sizes: 22 - 14 AWG
  • Connection Type: Pigtail
  • Connector Style: Insulation Displacement
  • Context: AutomotiveAftermarket
  • Family: IDC for Electrical Applications
  • Flame Retardant: Yes
  • Insulation Material: Nylon
  • Insulation Outer Diameter (Imperial): 0.15 in
  • Manufacturing Origin: USA
  • Material: Flame Retardant Nylon
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Wire Gauge: 22 AWG
  • Product Color: Blue
  • Product Type: Connector
  • Recommended Crimping Tool: E-9BM and/or Mechanics (slip joint) Pliers
  • Run Maximum Insulation Outer Diameter (Imperial): 0.155 in
  • Run Maximum Insulation Outer Diameter (Metric): 3.9 mm
  • Tap Maximum Insulation Outer Diameter (Imperial): 0.155 in
  • Tap Maximum Insulation Outer Diameter (Metric): 3.9 mm
  • Voltage Application: Low Voltage
  • Water-resistant: Yes
  • Wire Connector Type: IDC Connectors

Overview

UPC 05400709230
Family Brand Name 3M
Product Description Self-strippingFlame retardantMoisture resistantConnects and insulates in one stepDesigned for use with the 3M Scotchlok Crimping Tool, E-9BM
GTiN 00054007092308
Color Blue Cap and White Body
Voltage null
Type Self-Stripping, Fully Insulated
Material Nylon
Applications For Low-Voltage Applications and used to Connect 2 or 3 Wires While Insulating the Connection
Cable Type Solid/Stranded Copper
Cable Size 22-14 AWG
Housing Material Flame Retardant Nylon
Contact Material Brass
Max Operating Temperature 221 degrees F
Blade Dimensions 0.95 in L x 0.92 in W
Sub Brand Scotchlok
