Manufacturer 3M
Mfg Catalog # B/G+POUCH
NorthEast Part # 30856


  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
  • UL Listed and CSA Certified


  • Color Family: Multi-Color
  • Conductor Sizes: 14 - 6 AWG
  • Conductor Size Unit: AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Performance Plus Wire Connector
  • Flame Retardant: Yes
  • Grease Filling Against Corrosion: No
  • Insulation Color: Blue/Gray
  • Insulation Material: Polypropylene and thermoplastic elastomer
  • Interrupt Free Shifting: No
  • Material: Plastic
  • Maximum Conductor Size: 6 AWG
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 V (1000 V in signs, lighting fixtures and luminaries)
  • Maximum Wire Gauge: 6 AWG
  • Minimum Conductor Size: 14 AWG
  • Minimum Operating Temperature (Celsius): 0 NP
  • Minimum Operating Temperature (Fahrenheit): 0 NP
  • Minimum Wire Gauge: 14 AWG
  • Product Color: Gray - Blue
  • Product Type: Connector
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Voltage Rating: 600 Volt
  • Wire Connector Type: Twist-on Wire Connectors


UPC 05400743150

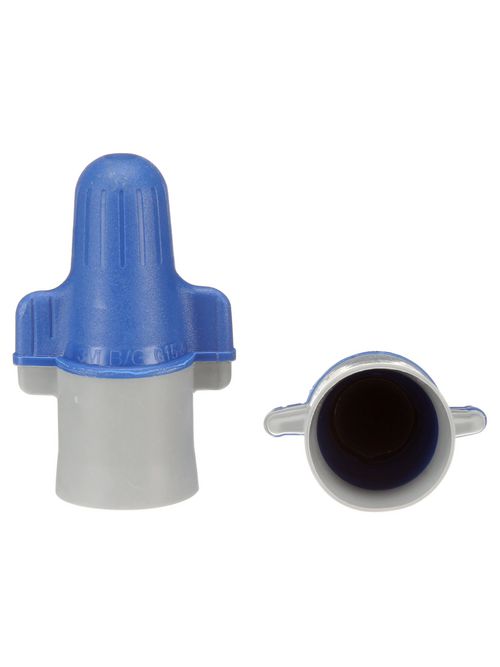

Product Description 3M Performance Plus Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
GTiN 00054007431503
Length 1.79 in
Color Blue/Gray
Type Flame Retardant
Material Plastic
Conductor Size 14-6 AWG
Applications For All Kinds of Jobs From Industrial and Residential Construction, to Automotive, Marine and Appliance Applications
Temperature Rating 105 C
Family Brand Name 3M
Insulation Material Polypropylene, Thermoplastic Elastomer
Sub Brand Performance Plus
Max Operating Temperature 221 degrees F
Diameter 1.12 in
Connection Type Twist-On
Contact Material Spring Steel
