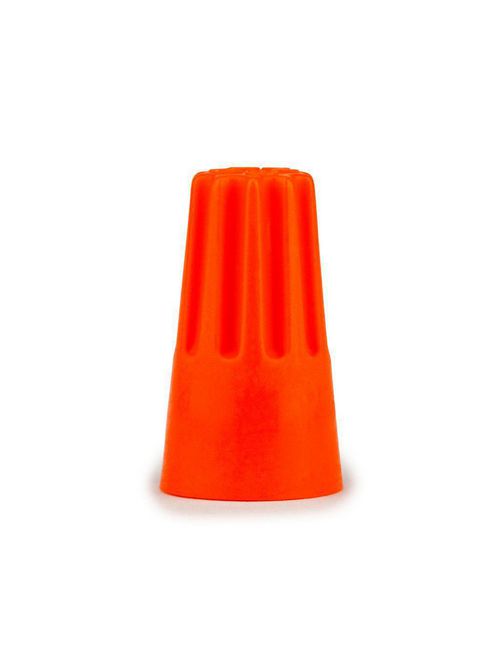

3M H-31-BAG H-31-BAG OR WIRE CONN (
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$0.08/ea
Usually available within 6 to 8 Days
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # H-31-BAG
NorthEast Part # 30269

Features

  • Used for connecting and insulating wire connections in a pigtail application
  • Suitable for select 3M™ Peformance Plus™ Wire Connectors and 3M™ Secure Grip Wire Connectors
  • Available in hand driver or power driver options

Specifications

  • Color Family: Orange
  • Conductor Sizes: 18 -14 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Highland™ Wire Connector
  • Flame Retardant: No
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 18 AWG
  • Minimum Operating Temperature (Celsius): 0 NP
  • Minimum Operating Temperature (Fahrenheit): 0 NP
  • Minimum Order Quantity: 500
  • Minimum Wire Gauge: 18 AWG
  • Product Color: Orange
  • Product Type: Connector
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Voltage Rating: 600 Volt
  • Wire Connector Type: Twist-on Wire Connectors

Overview

UPC 05400743118
Family Brand Name Highland
Product Description 3M Highland Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221F (105C). Highland wire connectors are UL Listed and work equally well with either solid or stranded copper wire.
GTiN 00054007431183
Size 18 -14 AWG
Color Orange
Voltage 600 Volt
Type Twist On
TC Connection Wire
Sub Brand Highland
Max Operating Temperature 221 degrees F
