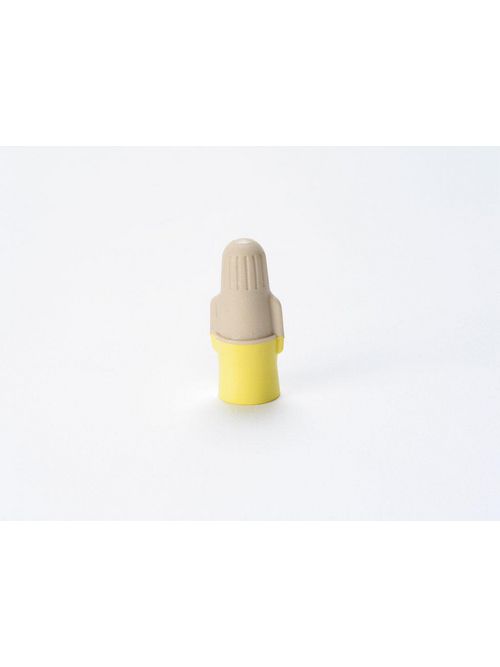

3M T/Y+JUG 500/Jug Tan/Yellow Spring Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$0.11/ea
29,000 Available for Delivery
Order by 06:00pm Monday for Delivery Tuesday
29,000 Available for Pickup at Brockton, MA - Counter
Available at These Locations
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # T/Y+JUG
NorthEast Part # 33453

Features

  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
  • UL Listed and CSA Certified

Specifications

  • Color Family: Multi-Color
  • Conductor Sizes: 22 - 12 AWG
  • Conductor Size Unit: AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Performance Plus Wire Connector
  • Flame Retardant: Yes
  • Material: Plastic
  • Maximum Conductor Size: 12 AWG
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 V
  • Maximum Wire Gauge: 12 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Operating Temperature (Celsius): 0 NP
  • Minimum Operating Temperature (Fahrenheit): 0 NP
  • Minimum Order Quantity: 500
  • Minimum Wire Gauge: 22 AWG
  • Product Color: Tan - Yellow
  • Product Type: Connector
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Voltage Rating: 600 Volt
  • Wire Connector Type: Twist-on Wire Connectors

Categories

Overview

UPC 05112855219
Product Description 3M Performance Plus Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
GTiN 00051128552193
Color Tan/Yellow
Type Wire
Temperature Rating 221 F
Family Brand Name 3M
TC Connection Twist On
Voltage 600/1000 Volt
Material Plastic
Max Operating Temperature 221 degrees F
