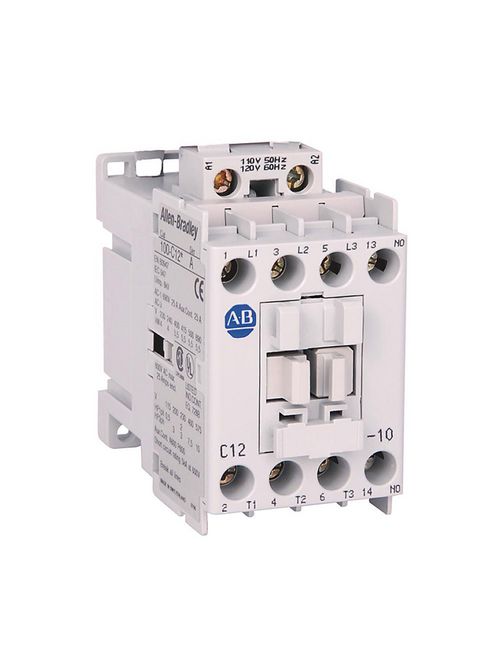

Allen Bradley 100-C12KY01 12 Amp IEC Contactor

Specifications

• Connection: Screw Terminals
• 3-Phase kW (50 Hz) 400V/415V Rating: 5.5
• 3-Phase kW (50 Hz) 500V Rating: 5.5
• 3-Phase kW (50 Hz) 690V Rating: 5.5
• 1-Phase HP (60 Hz) 115V Rating: 0.5
• 3-Phase HP (60 Hz) 460V Rating: 7.5
• 3-Phase HP (60 Hz) 575V Rating: 10

Contactor Data

• Terminal Type: Screw Terminals
• Rated Operating Current, AC-3: 12A
• Coil Voltage: 48V 50/60Hz
• Coil Termination: Line Side
• Contact Configuration: 0 N.O. 1 N.C. Auxiliary Contact Configuration
• Package Quantity: 1

Application Data

• Electrical Standards: UL

Load Data [Optional]

• Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

• Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

• 100-C or 104-C Contactor: 2_
• Front Mounted Auxiliary Contact: None
• Left Side Auxiliary Contact: None
• Right Side Auxiliary Contact: None
• Interlock: None
