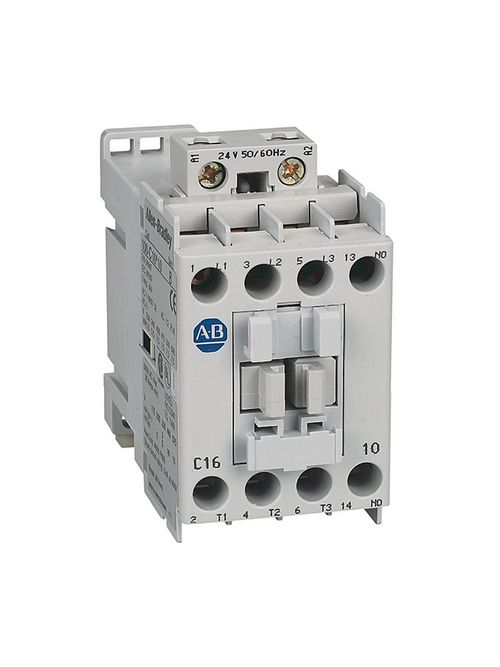

Allen-Bradley 100-C16D10 16 Amp Contactor
$171.00/ea
13 Available for Delivery
Order by 06:00pm Monday for Delivery Tuesday
13 Available for Pickup at Brockton, MA - Counter
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100-C16D10
NorthEast Part # 91381

Features

  • Provides front and side mounting of auxiliary contacts
  • Includes space-saving coil-mounted control modules
  • RoHs compliant
  • Provides reversible coil terminations (line or load side)
  • Includes built-in surge suppression with DC coils
  • Provides IP2X finger protection
  • Meets IEC, UL, and CSA standards requirements
  • Offers common accessories for all contactor sizes
  • Includes reversible coil terminations (line or load side)
  • Includes electronic and pneumatic timing modules

Specifications

  • Connection: Screw Terminals
  • Coil Voltage: 110V 50Hz / 120V 60Hz
  • 3-Phase kW (50 Hz) 230V Rating: 5.5
  • 3-Phase kW (50 Hz) 400V/415V Rating: 7.5
  • 3-Phase kW (50 Hz) 500V Rating: 7.5
  • 3-Phase kW (50 Hz) 690V Rating: 7.5
  • 3-Phase HP (60 Hz) 460V Rating: 10
  • 3-Phase HP (60 Hz) 575V Rating: 15

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 16A
  • Coil Termination: Line Side
  • Contact Configuration: 1 N.O. 0 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: 1_
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Overview

UPC 66207259872
Product Description IEC 16 A Contactor
GTiN 00662072598726
Type Contactor
Terminal Type Screw Terminals
Connection Type Screw Terminals
Coil Voltage 120 V
Family Brand Name Allen Bradley
Power Rating 7.5 kW
Contact Configuration 1 NO Auxiliary
Current 16 A
Used With DIN Installation Panels
Sub Brand IEC
Voltage 230-690/115-575 Volt
