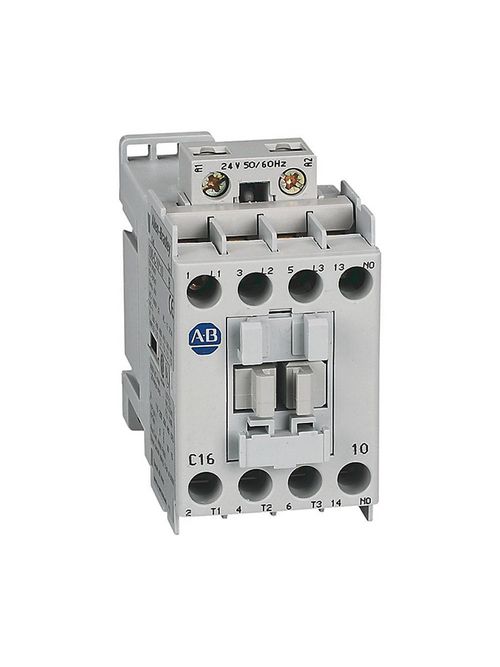

Allen-Bradley 100-C16EJ400 16 Amp IEC Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$255.96/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100-C16EJ400
NorthEast Part # 801026

Features

  • Includes built-in surge suppression with DC coils
  • Includes electronic and pneumatic timing modules
  • Provides IP2X finger protection
  • Provides front and side mounting of auxiliary contacts
  • Meets IEC, UL, and CSA standards requirements
  • Offers common accessories for all contactor sizes
  • RoHs compliant
  • Includes reversible coil terminations (line or load side)
  • Provides reversible coil terminations (line or load side)
  • Includes space-saving coil-mounted control modules

Specifications

  • Connection: Screw Terminals
  • 3-Phase kW (50 Hz) 230V Rating: 5.5
  • 3-Phase kW (50 Hz) 400V/415V Rating: 7.5
  • 3-Phase kW (50 Hz) 500V Rating: 7.5
  • 3-Phase kW (50 Hz) 690V Rating: 7.5
  • 3-Phase HP (60 Hz) 460V Rating: 10
  • 3-Phase HP (60 Hz) 575V Rating: 15

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 16A
  • Coil Voltage: 24V DC Electronic Coil
  • No. of Poles: 4 Poles
  • Coil Termination: Line Side
  • Contact Configuration: 4 N.O. 0 N.C. Main Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: None
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Overview

UPC 66207488920
Product Description 1EC 16 A Contactor
GTiN 00662074889204
Type Contactor
Terminal Type Screw Terminals
Conductor Size 16-10 AWG
Mounting Type 35 mm DIN Rail
Connection Type Screw-Type Terminals
Coil Voltage 24 VDC
Temperature Rating -25 to 60 C
Family Brand Name Allen Bradley
Power Rating 5.5 kW at 230 V, 7.5 kW at 400/415 V, 7.5 kW at 500 V, 7.5 kW at 690 V
Contact Configuration 4 NO Main
Current 16 A
Blade Dimensions 45 mm L x 80.5 mm W x 105 mm H
Environmental Conditions -55 to 80 C Storage Temperature
Number of Poles 4 Pole
Sub Brand IEC
Standard C-TICK,CCC,KC
