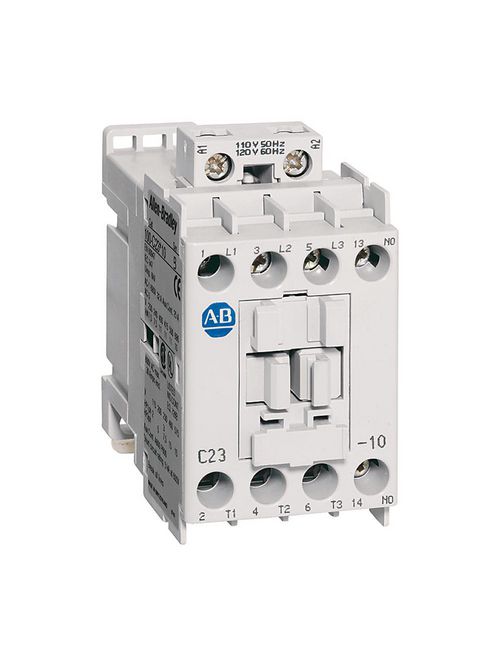

Allen Bradley 100-C23KJ01 23 Amp IEC Contactor
$193.00/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100-C23KJ01
NorthEast Part # 1114017

Specifications

  • Connection: Screw Terminals
  • 3-Phase kW (50 Hz) 230V Rating: 7.5
  • 3-Phase kW (50 Hz) 400V/415V Rating: 11
  • 3-Phase kW (50 Hz) 500V Rating: 13
  • 3-Phase kW (50 Hz) 690V Rating: 10
  • 3-Phase HP (60 Hz) 230V Rating: 7.5
  • 3-Phase HP (60 Hz) 460V Rating: 15
  • 3-Phase HP (60 Hz) 575V Rating: 15

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 23A
  • Coil Voltage: 24V 50/60Hz
  • Coil Termination: Line Side
  • Contact Configuration: 0 N.O. 1 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: 2_
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Overview

UPC 66207259740
Product Description IEC 23 A Contactor
GTiN 00662072597408
Type Contactor
Terminal Type Screw Terminals
Connection Type Screw Terminals
Coil Voltage 24 VAC at 50/60 Hz
Family Brand Name Allen Bradley
Contact Configuration 1 NC Auxiliary
Current 23 A
Sub Brand IEC
Conductor Size 16-10 AWG
Mounting Type Panel or 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 7.5 kW at 230 V, 11 kW at 400/415 V, 13 kW at 500 V and 10 kW at 690 V
Blade Dimensions 1-25/32 in W x 3-11/64 in D x 3-3/16 in H
Environmental Conditions -55 to 80 deg C Storage Temperature, IEC 60068-2-1/-2/-30 Climatic Withstand, 2000 m Maximum Altitude of Installation Site
Number of Poles 3 Pole
