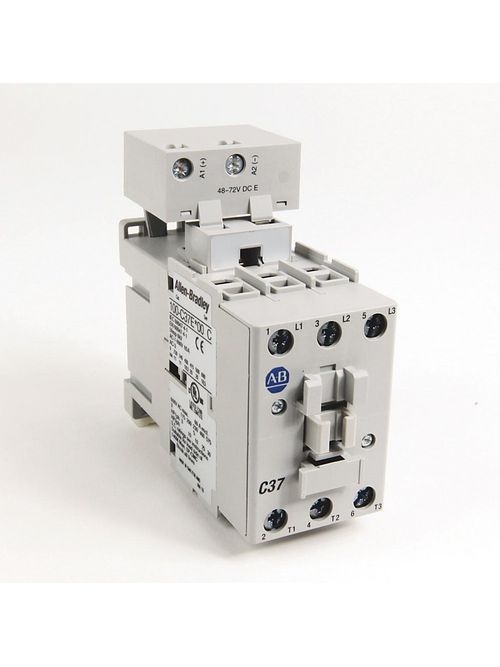

Allen-Bradley 100-C37D01 37 Amp IEC Contactor
$286.00/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100-C37D01
NorthEast Part # 164303

Specifications

  • Connection: Screw Terminals
  • Coil Voltage: 110V 50Hz / 120V 60Hz
  • 3-Phase kW (50 Hz) 230V Rating: 11
  • 3-Phase kW (50 Hz) 400V/415V Rating: 18.5/20
  • 3-Phase kW (50 Hz) 500V Rating: 20
  • 3-Phase kW (50 Hz) 690V Rating: 18.5
  • 3-Phase HP (60 Hz) 200V Rating: 10
  • 3-Phase HP (60 Hz) 230V Rating: 10
  • 3-Phase HP (60 Hz) 460V Rating: 25
  • 3-Phase HP (60 Hz) 575V Rating: 30

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 37A
  • No. of Poles: 3 Poles
  • Coil Termination: Line Side
  • Contact Configuration: 0 N.O. 1 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: 2_
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Features

  • Provides IP2X finger protection
  • Includes built-in surge suppression with DC coils
  • Includes reversible coil terminations (line or load side)
  • Meets IEC, UL, and CSA standards requirements
  • Includes electronic and pneumatic timing modules
  • RoHs compliant
  • Offers common accessories for all contactor sizes
  • Provides front and side mounting of auxiliary contacts
  • Includes space-saving coil-mounted control modules
  • Provides reversible coil terminations (line or load side)

Overview

UPC 66246871604
Product Description IEC 37 A Contactor
GTiN 00662468716048
Type Contactor
Terminal Type Screw Terminals
Connection Type Screw Terminals
Coil Voltage 120 V
Family Brand Name Allen Bradley
Contact Configuration 1 NC Main
Current 37 A
Number of Poles 3 Pole
Sub Brand IEC
Voltage null
