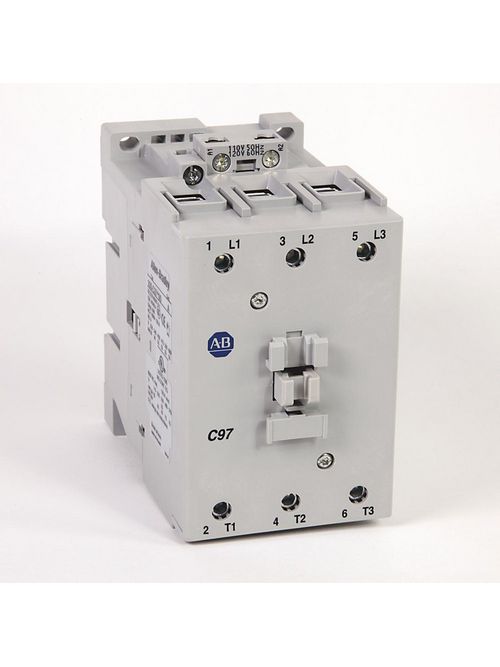

Allen Bradley 100-C97D00 110/120 VAC 97 Amp 75 Hp 3-Phase 3-Pole IEC Contactor
$545.00/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100-C97D00
NorthEast Part # 722432

Features

  • Includes built-in surge suppression with DC coils
  • Provides IP2X finger protection
  • Includes electronic and pneumatic timing modules
  • RoHs compliant
  • Includes space-saving coil-mounted control modules
  • Meets IEC, UL, and CSA standards requirements
  • Provides reversible coil terminations (line or load side)
  • Includes reversible coil terminations (line or load side)
  • Provides front and side mounting of auxiliary contacts
  • Offers common accessories for all contactor sizes

Specifications

  • Connection: Screw Terminals
  • Coil Voltage: 110V 50Hz / 120V 60Hz
  • 3-Phase kW (50 Hz) 230V Rating: 30
  • 3-Phase kW (50 Hz) 400V/415V Rating: 55
  • 3-Phase kW (50 Hz) 500V Rating: 55
  • 3-Phase kW (50 Hz) 690V Rating: 55
  • 1-Phase HP (60 Hz) 115V Rating: 10
  • 1-Phase HP (60 Hz) 230V Rating: 20
  • 3-Phase HP (60 Hz) 200V Rating: 30
  • 3-Phase HP (60 Hz) 230V Rating: 30
  • 3-Phase HP (60 Hz) 460V Rating: 75
  • 3-Phase HP (60 Hz) 575V Rating: 75

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 97A
  • No. of Poles: 3 Poles
  • Coil Termination: Line Side
  • Contact Configuration: 0 N.O. 0 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: None
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Overview

UPC 61259876827
Product Description IEC 97 A Contactor
GTiN 00612598768271
Type Contactor
Terminal Type Screw Terminals
Conductor Size 14-1 AWG
Mounting Type 35 mm DIN Rail
Connection Type Screw Terminals
Coil Voltage 110 VAC at 50 Hz, 120 VAC 60 Hz
Temperature Rating -25 to 60 C
Family Brand Name Allen Bradley
Power Rating 30 kW at 230 V, 55 kW at 400/415 V, 55 kW at 500 V, 55 kW at 690 V
Contact Configuration 3 NO Main
Current 97 A
Blade Dimensions 72 mm L x 117 mm W x 122 mm H
Environmental Conditions -55 to 80 C Storage Temperature
Number of Poles 3 Pole
Sub Brand IEC
