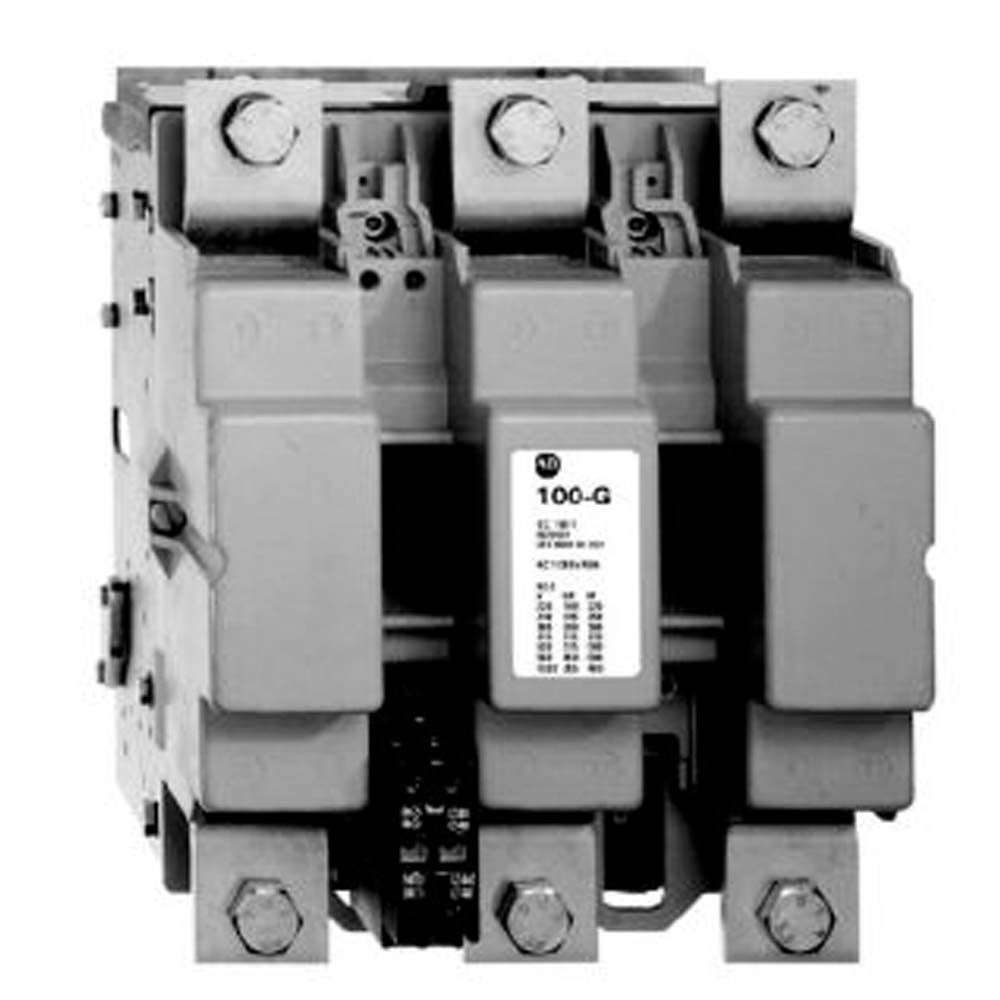

Allen Bradley 100-G1200KF12 IEC Contactor
$19,000.00/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100-G1200KF12
NorthEast Part # 1011638

Specifications

  • Coil Voltage: 220-230V 50/60 Hz
  • 3-Phase kW (50 Hz) 230V Rating: 375
  • 3-Phase kW (50 Hz) 400V Rating: 710
  • 3-Phase kW (50 Hz) 500V Rating: 900
  • 3-Phase kW (50 Hz) 690V Rating: 1000
  • 3-Phase HP (60 Hz) 200V Rating: 450
  • 3-Phase HP (60 Hz) 230V Rating: 450
  • 3-Phase HP (60 Hz) 460V Rating: 900
  • 3-Phase HP (60 Hz) 575V Rating: 900

System Voltage Data

  • Phases: Three Phase

Contactor Data

  • Rated Operating Current: 1200 A
  • Control Voltage: Coil Code KF:
  • Auxiliary Contact Configuration: 2 N.O. 2 N.C., 1 N.O. contact used in control circuit

Features

  • Saves energy with low power consumption
  • Includes space-saving coil-mounted control modules
  • Meets IEC, UL, and CSA standards requirements
  • Includes electronic and pneumatic timing modules
  • Provides IP2X finger protection
  • Offers common accessories for all contactor sizes
  • Available integrated PLC interface
  • Includes built-in surge suppression
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
  • Provides reversible coil terminations (line or load side)
  • RoHs compliant
  • Includes reversible coil terminations (line or load side)
  • Complies with RoHs
  • Simplifies selection with electronic wide-range AC/DC coils
  • Provides front and side mounting of auxiliary contacts

Overview

UPC 61132031834
Product Description IEC CONTACTOR
Coil Voltage 220-230 V
Family Brand Name Allen Bradley
Number of Phases 3
Current 1200 A
