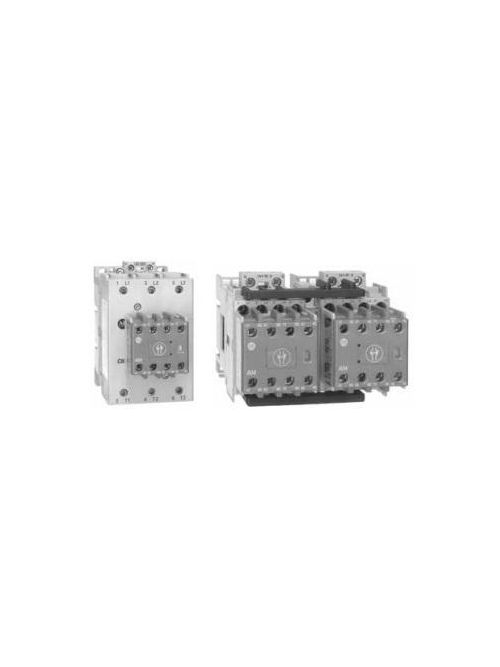

Allen Bradley 100S-C37EJ04C 24 VDC 37 Amp 30 Hp 3-Phase 3-Pole 4NC IEC Contactor
Product image thumbnail 0
Product image thumbnail 1
$458.00/ea
Usually available within 15 to 25 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100S-C37EJ04C
NorthEast Part # 541338

Specifications

  • Contact Configuration: 0 N.O. 4 N.C.
  • Special Features: Standard Contact

Contactor Data

  • Rated Operating Current, AC-3: 37A
  • Coil Voltage: 24V DC Electronic Coil
  • No. of Power Poles: 3 N.O.
  • Coil Termination: Line Side
  • Auxiliary Contact Configuration: 0 N.O. 4 N.C.
  • Auxiliary Contact Type: Standard Contact

Overview

UPC 66207492361
Product Description 37 A Safety Contactor
GTiN 00662074923618
Type Standard
Coil Voltage 24 VDC
Family Brand Name Allen Bradley
Contact Configuration 4 NC Auxiliary
Current 37 A
Contact Rating 37 A
Conductor Size 14-4 AWG
Temperature Rating -25 to 60 C
Power Rating 11 kW at 230 V, 18.5/20 kW at 400/415 V, 20 kW at 500 V, 18.5 kW at 690 V
Blade Dimensions 45 mm L x 136.5 mm W x 81 mm H
Environmental Conditions -55 to 80 C Storage, IEC 60068-2-27 Resistance To Shock, IEC 60068-2-6 Resistance To Vibration, 2000 NN Per IEC 60947-1 Maximum Altitude Of Installation Site, IEC 60068-2-1/-2/-30 Climatic Withstand
Number of Poles 4 Pole
Standard C-TICK,CCC,KC
