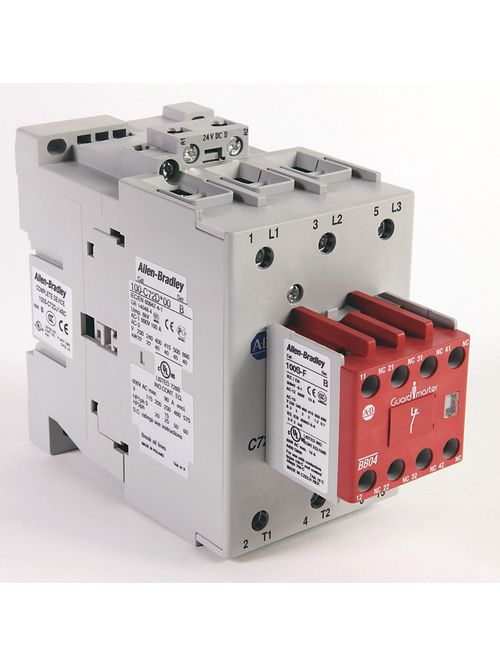

Allen Bradley 100S-C72KD14C 72 Amp Safety Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$526.00/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100S-C72KD14C
NorthEast Part # 951471

Specifications

  • Contact Configuration: 1 N.O. 4 N.C.
  • Special Features: Standard Contact

Contactor Data

  • Rated Operating Current, AC-3: 72A
  • Coil Voltage: 110V 50/60Hz
  • No. of Power Poles: 3 N.O.
  • Coil Termination: Line Side
  • Auxiliary Contact Configuration: 1 N.O. 4 N.C.
  • Auxiliary Contact Type: Standard Contact

Overview

UPC 61132096951
Product Description 72 A Safety Contactor
GTiN 00611320969511
Type Standard
Coil Voltage 110 VAC at 50/60 Hz
Family Brand Name Allen Bradley
Contact Configuration 1 NO, 4 NC Auxiliary
Current 72 A
Contact Rating 72 A
Conductor Size 14-1 AWG
Temperature Rating -25 to 60 C
Power Rating 22 kW at 230 V, 40 kW at 400/415 V, 45 kW at 500 V, 40 kW at 690 V
Blade Dimensions 72 mm L x 156 mm W x 122 mm H
Environmental Conditions -55 to 80 C Storage, IEC 60068-2-27 Resistance To Shock, IEC 60068-2-6 Resistance To Vibration, 2000 NN Per IEC 60947-1 Maximum Altitude Of Installation Site, IEC 60068-2-1/-2/-30 Climatic Withstand
Number of Poles 3 Pole
Standard CCC,KC
