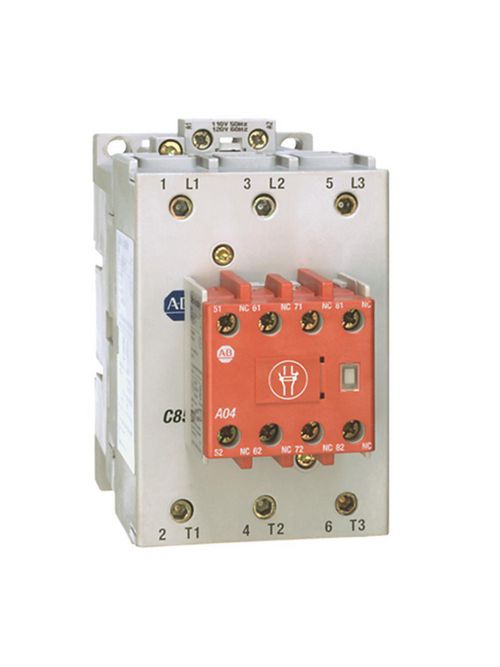

Allen Bradley 100S-C85D14BC 85 Amp Safety Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$698.76/ea
Usually available within 22 to 36 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 100S-C85D14BC
NorthEast Part # 423189

Features

  • Provides AC and DC operating coils
  • Includes red contact housing for easy identification
  • Offers a complete range of accessories
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils

Specifications

  • Coil Voltage: 110V 50Hz / 120V 60Hz
  • Contact Configuration: 1 N.O. 4 N.C.
  • Special Features: Bifurcated Contact
  • 3-Phase kW (50 Hz) 230V Rating: 25
  • 3-Phase kW (50 Hz) 400V/415V Rating: 45
  • 3-Phase kW (50 Hz) 500V Rating: 55
  • 3-Phase kW (50 Hz) 690V Rating: 45
  • 1-Phase HP (60 Hz) 115V Rating: 7.5
  • 1-Phase HP (60 Hz) 230V Rating: 15
  • 3-Phase HP (60 Hz) 200V Rating: 25
  • 3-Phase HP (60 Hz) 230V Rating: 30
  • 3-Phase HP (60 Hz) 460V Rating: 60
  • 3-Phase HP (60 Hz) 575V Rating: 60

Contactor Data

  • Rated Operating Current, AC-3: 85A
  • No. of Power Poles: 3 N.O.
  • Coil Termination: Line Side
  • Auxiliary Contact Configuration: 1 N.O. 4 N.C.
  • Auxiliary Contact Type: Bifurcated Contact

Overview

UPC 78118094643
Product Description 85 A Safety Contactor
GTiN 00781180946431
Type Safety Contactor
Coil Voltage 110 V
Family Brand Name Allen Bradley
Power Rating 45 kW
Contact Configuration 1 NO, 4 NC Auxiliary
Current 85 A
Contact Rating 85 A
Used With DIN Installation Panels
Voltage 230-690 VAC at 50 Hz, 115-575 VAC at 60 Hz
Standard CCC,CE,CUL,KC,UL
