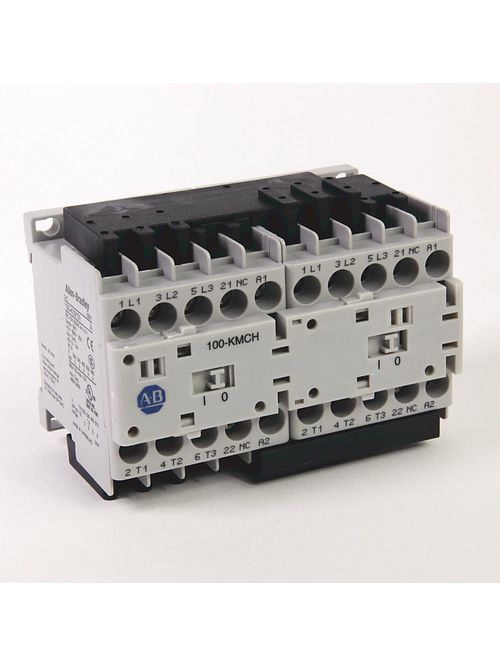

Allen-Bradley 104-K09D02 IEC Miniature Reversing Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$256.00/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 104-K09D02
NorthEast Part # 471092

Specifications

  • Connection: Screw Type Terminals
  • Coil Voltage: 110V 50Hz/120V 60Hz

Assembly

  • Factory or User Assembled?: Factory Assembled

System Voltage Data

  • Phases: 3 Phase

Contactor Data

  • Terminal Type: Screw Type Terminals
  • Rated Operating Current: 9 A
  • Control Voltage: 110V 50Hz/120V 60Hz
  • No. of Poles: 3 Poles
  • Main Contact Configuration: 3 N.O.
  • Auxiliary Contact Configuration (Per Contactor): 1 N.C.

Overview

UPC 66207449893
Product Description IEC Miniature Reversing Contactor
GTiN 00662074498932
Type Miniature, Reversing
Terminal Type Screw Terminals
Connection Type Screw Type Terminals
Coil Voltage 110 VAC at 50 Hz, 120 VAC at 60 Hz
Control Voltage 110 V
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Contact Configuration 1 NC Auxiliary
Current 9 A
Contact Rating 9 A
Number of Poles 3 Pole
Sub Brand IEC
Conductor Size 18 - 12 AWG
Mounting Type Panel or 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 1.5 kW at 230 V, 2.2 kW at 400/415/500/690 V
Blade Dimensions 44.9 mm W x 78.7 mm D x 56 mm H
Environmental Conditions -55 to 80 C Storage, IEC 60068-2-30 Climatic Withstand, 2000 NN m, per IEC60947-4 Maximum Altitude of Installation Site
Standard CCC,CE,CUL,GOST,KC,UL
