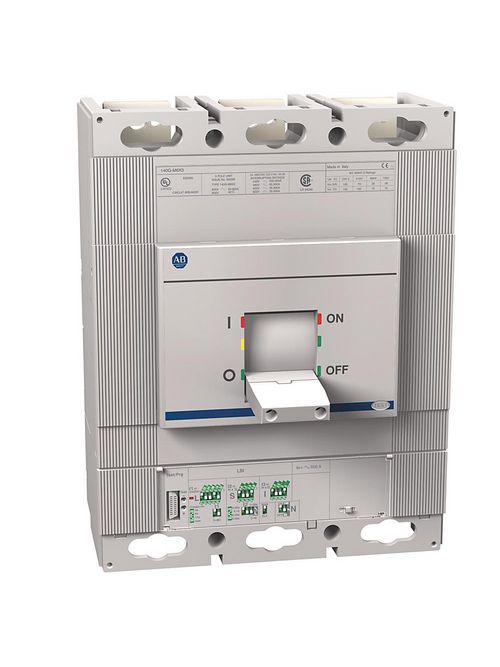

Allen Bradley 140G-M6H3-D60 800 Amp M-Frame Molded Case Circuit Breaker

Features

• Offers a wide range of operating mechanisms to fit a variety of panel configurations
• Offers a wide range of accessories for global availability
• Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
• Provides greater customization in trip units

Specifications

• Bulletin Number: 140G - Molded Case Circuit Breaker
• Frame/Rating: M Frame (800 A)
• Interrupting Rating, 50/60 Hz, 240V (kA): 200
• Interrupting Rating, 50/60 Hz, 480V (kA): 65
• Interrupting Rating, 50/60 Hz, 600V (kA): 35
• Breaking Capacity, 50/60 Hz, 220V (kA): 100
• Breaking Capacity, 50/60 Hz, 415V (kA): 70
• Breaking Capacity, 50/60 Hz, 690V (kA): 25
• Interrupting Rating, 50/60 Hz, 600V DC (kA): 35

Circuit Breaker Data

• Device Type: 140G - Molded Case Circuit Breaker
• Number of Poles: 3 Poles
• Frame Size: M frame
• Rated Current(A): 600 A
• Protection: LSI (electronic)
• Current Range: 80% Rated

Manufacturing

• Assembly: Factory Assembled
