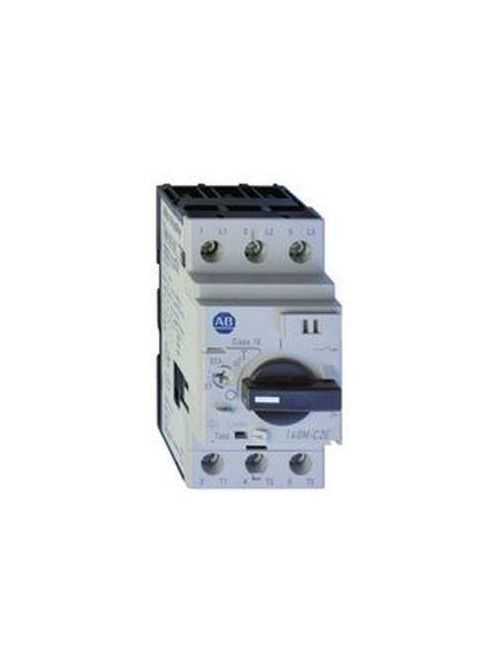

Allen Bradley 140M-C2E-C10-AX Motor Protector Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually available within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 140M-C2E-C10-AX
NorthEast Part # 978307


System Voltage Data

  • Supply Voltage: 480V 60Hz

Circuit Breaker

  • Circuit Breaker Type: Motor Protection Circuit Breaker
  • Adj. Thermal Current Range (A): 6.3 - 10A
  • Application: Standard Magnetic Trip (Fixed at 13 x le)
  • Frame Size: Frame Size C
  • Breaking Capacity: Standard Breaking Capacity
  • UL Listed Application Ratings: UL 508 - Manual Motor Controller

Short Circuit Coordination

  • Coordination Type: Type 1


  • Side Mount Shunt Trip and Undervoltage Release: None
  • Front Mount Auxiliary and Trip Contacts: 1 N.C.
  • Side Mount Auxiliary and Trip Contacts (TESTDESC): None


UPC 66207456139
Product Description Motor Protection Circuit- Breaker
Family Brand Name Allen Bradley
Circuit Breaker Type Motor Protection Circuit Breaker
GTiN 00662074561391
Type Normal Break
Applications For Branch Circuit, Short-Circuit Protection, Overload Protection
Mounting Type 35 mm DIN Rail
Temperature Rating -25 to 60 C
Frame C, 32 A
Power Rating 2.2 kW at 230 V, 4 kW at 400/415 V, 6.3 kW at 500 V, 7.5 kW at 690 V
Actuator Rotary Lever
Environmental Conditions 23 C at 83%, 40 C at 92% Relative Humidity, 3 Degree of Pollution, -40 to 80 C Storage
Trip Type Adjustable Thermal/Fixed Magnetic
Number of Poles 3 Pole
Interrupt Rating 100 kA at 400 V, 65 kA at 480 V
Trip Range 130 A
