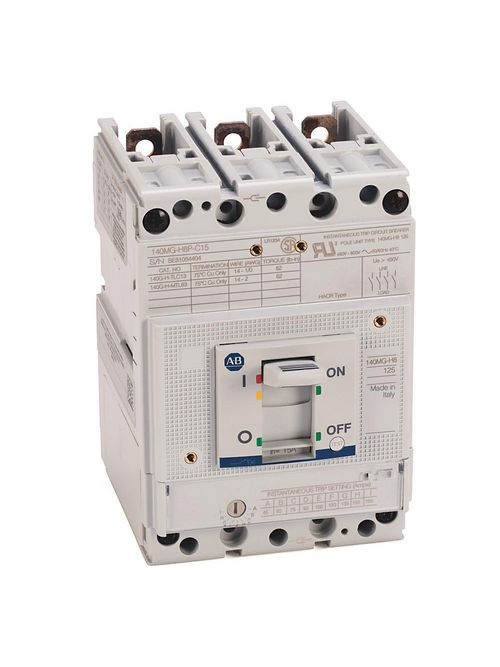

Allen Bradley 140MG-H8P-C80 80 Amp H-Frame Motor Protector Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$995.94/ea
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 140MG-H8P-C80
NorthEast Part # 890992

Features

  • Includes visible trip indication
  • Offers high current limiting option
  • Offers high switching capacity

Specifications

Circuit Breaker Data

  • Bulletin Number: 140MG - Motor Circuit Protectors
  • Protection Type: MCP (magnetic only)
  • Frame Size: H frame
  • Rated Operational Current Ie(A): 80 A

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 88563044189
Product Description 140MG 80A H Frame Motor Ckt Protector
GTiN 00885630441894
Type High Break, Adjustable Magnetic
Family Brand Name Allen Bradley
Number of Poles 3 Pole
Sub Brand 140MG
Temperature Rating -25 to 70 C
Power Rating 22 kW at 200 V, 45 kW at 230 V, 55 kW at 460 V, 75 kW at 575 V
Blade Dimensions 3.54 in W x 3.25 in D x 5.12 in H
Operating Cycles 25000 Mechanical, 8000 Electrical
Standard C-TICK,CCC
Certifications CCC,CE,CSA Certified,UL Recognized
